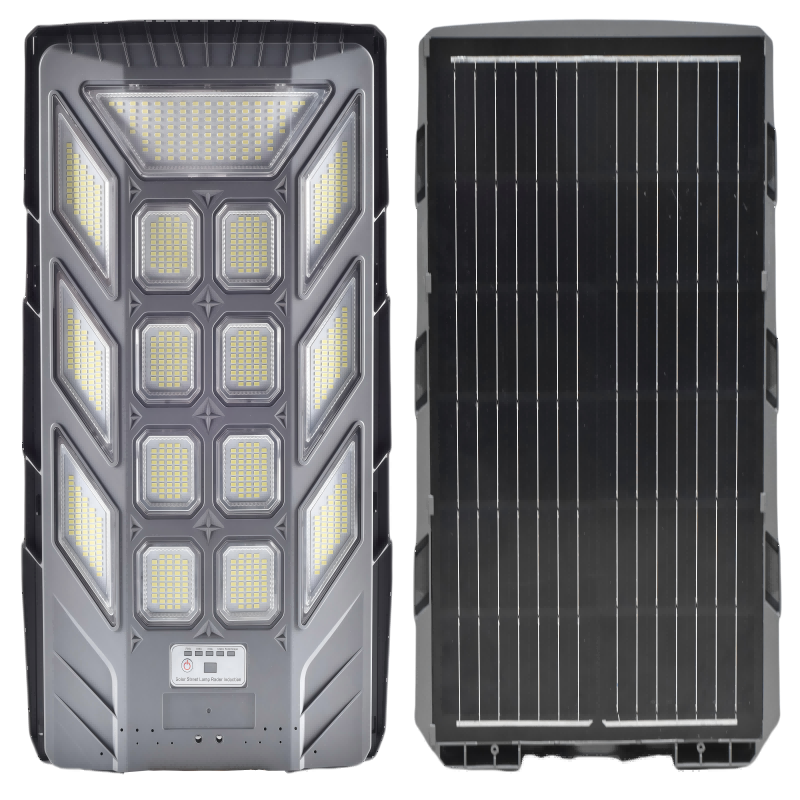

Telescopic All-in-One Solar LED Street Light (Model: SL118) | Outdoor IP65 Solar Lighting
Packing Information
| Model | Carton Size (cm) | Qty / CTN | 20′ GP | 40′ GP | 40′ HQ |
| SL118-300W | 36.5 * 34 * 55 | 10 PCS | 4100 | 8200 | 10000 |
| SL118-500W | 57 * 34 * 28.5 | 5 PCS | 2550 | 5070 | 6150 |
| SL118-1000W | 63 * 38.5 * 35 | 5 PCS | 1650 | 3300 | 4000 |
| SL118-2000W | 94 * 16.5 * 40 | 2 PCS | 900 | 1800 | 2200 |
Product Overview
The SL118 Telescopic All-in-One Solar Street Light is an innovative, high-performance outdoor lighting solution designed to meet the rigorous demands of various climates, making it an excellent choice for markets across the Middle East, Africa, and Europe.
Engineered with a unique telescopic pole design and a curved, three-sided light distribution, this solar street light provides a significantly wider lighting area. It combines a super large monocrystalline silicon solar panel, a durable lithium battery, and high-lumen 5730 LED chips into a single, sleek ABS housing. It provides a reliable, wire-free, and maintenance-free lighting experience, perfectly suited for illuminating roads, communities, streets, courtyards, parks, and public squares.
Key Features & Benefits
- Innovative Telescopic Design: Features a retractable stand that not only provides flexible installation options but also significantly saves packaging space and shipping costs.
- Wider Lighting Area: The unique four-sided light structure with a curved design ensures a broader and more uniform light distribution compared to traditional flat panels.
- High-Lumen 5730 LED Source: Delivers ultra-bright illumination with an impressive efficacy of 190 LM/W, ensuring brilliant visibility at night.
- Super Large Monocrystalline Solar Panel: Boasts a high solar conversion rate of 23%, allowing for efficient charging even in low-light environments.
- Smart Radar Sensor & Charging: Equipped with intelligent charging during the day and a built-in radar sensor for smart lighting at night, maximizing energy efficiency and extending battery life.
- Robust New ABS Housing: Built to withstand harsh outdoor environments with excellent durability.
- IP65 Waterproof Rating: Fully protected against dust and water jets, guaranteeing stable operation in extreme weather conditions. Drainage hole design prevents internal water accumulation.
- 2-Year Warranty: We stand behind the quality of our products, offering a reliable 2-year warranty for peace of mind.
Ideal Applications
The SL118 series is versatile and designed for a wide range of outdoor applications, including:
- Roads and streets
- Communities and residential areas
- Courtyards and gardens
- Public squares and parks
- New rural construction projects
Technical Specifications
| Parameter | SL118-300W | SL118-500W | SL118-1000W | SL118-2000W |
| Input Voltage | 3V | 3V | 3V | 3V |
| Battery Capacity | 3.2V 24AH | 3.2V 30AH | 3.2V 36AH | 3.2V 48AH |
| Solar Panel | 6V 15W | 6V 20W | 6V 40W | 6V 60W |
| Luminous Angle | 70*140° | 70*140° | 70*140° | 70*140° |
| Efficacy | 190LM/W | 190LM/W | 190LM/W | 190LM/W |
| CCT | 7000~8000K | 7000~8000K | 7000~8000K | 7000~8000K |
| CRI | 70 | 70 | 70 | 70 |
| Ambient Temperature | -40°C~+45°C | -40°C~+45°C | -40°C~+45°C | -40°C~+45°C |
| LED Qty (5730 Type) | 356 | 545 | 806 | 1210 |
| Luminaire Size (mm) | 34526260 | 54826260 | 60537060 | 92038060 |
| Body Material | New ABS | New ABS | New ABS | New ABS |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
Installation Guidelines
The SL118 supports both Wall-mounted Installation and Pole Installation.
Recommended Installation Height:
- 300W: 3m – 4m
- 500W: 4m – 5m
- 1000W: 5m – 7m
- 2000W: 6m – 8m
Note: We offer technical support including DIALUX simulations and IES files upon request to help you calculate the exact quantity and lighting effects for your specific project.
Safety & Maintenance Precautions
To ensure optimal performance and safety, please adhere to the following guidelines:
- Professional Installation: The installation must be completed by a qualified and professional electrician.
- Optimal Placement: The solar panel should be installed facing directly towards the sun. It must NOT be sheltered by trees, buildings, or any other covers to ensure maximum charging efficiency.
- Eye Safety: Do not look directly at the high-lumen LED light source with the naked eye to avoid potential eye damage.
Product Integrity: Do NOT dismantle or modify the product. Unauthorized disassembly may be dangerous and will void the w
