Product Overview

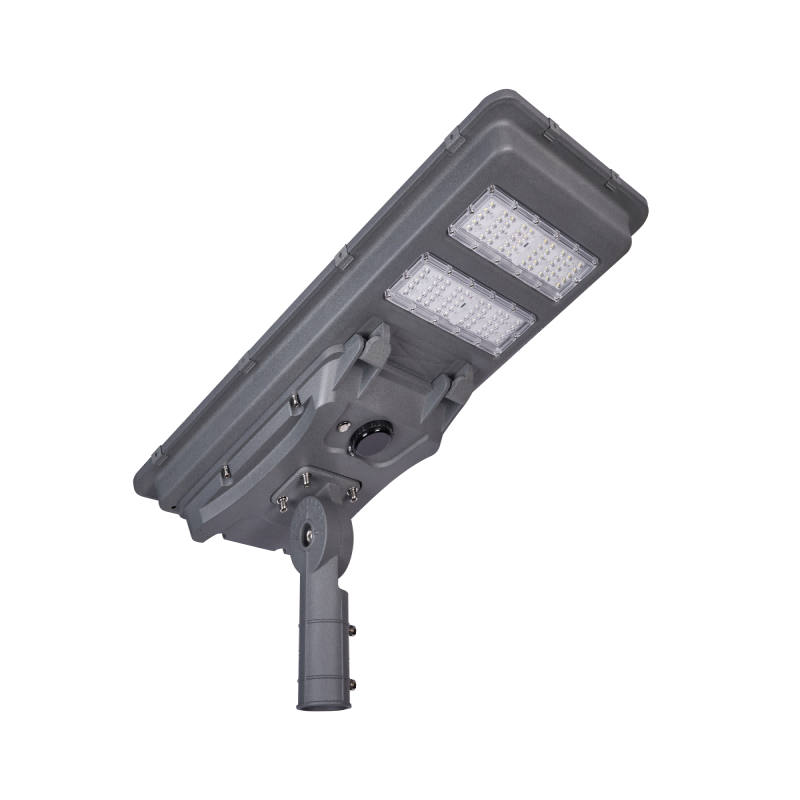

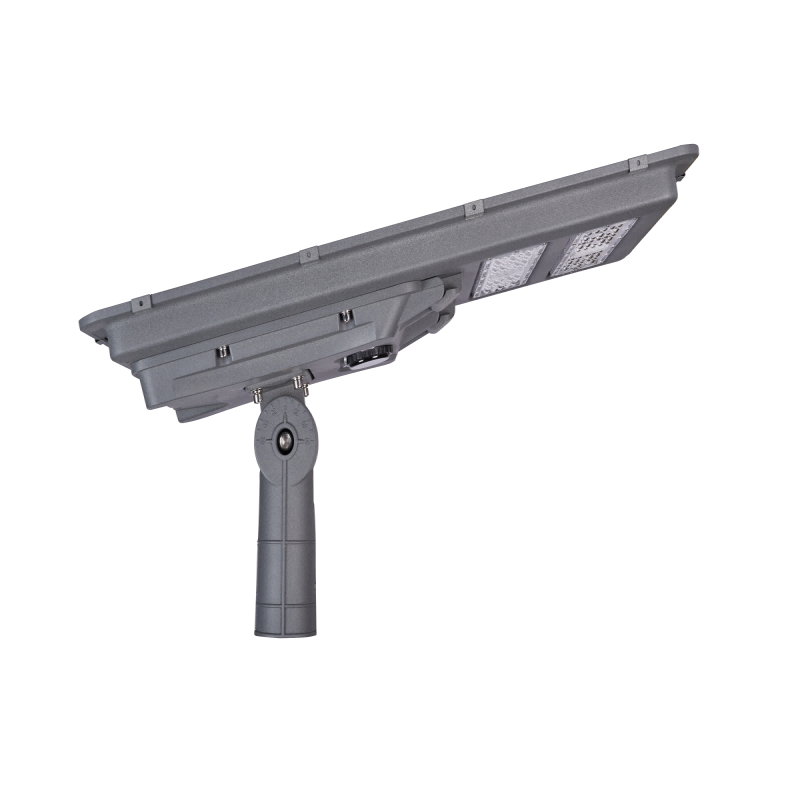

The SL014 is an integrated solar street light system that combines the LED lamp head, LiFePO4 lithium battery, and intelligent controller into a compact aluminum alloy housing. This product utilizes advanced solar conversion technology and high-efficiency LED lighting chips to provide stable and reliable illumination performance in various harsh outdoor environments.

Designed to industrial standards, the SL014 features an IP65 waterproof rating and operates reliably across a temperature range of -25°C to +65°C, meeting the requirements for street lighting, parking lots, squares, industrial zones, and various other outdoor lighting applications.

The SL014 series offers three power configurations: 60W, 80W, and 100W, allowing flexible selection based on specific project lighting requirements. All products come with a 3-year warranty and comprehensive technical support and installation guidance.

Engineered with an integrated and compact structure, this solar street light combines a high-conversion mono-crystalline solar panel, a durable LiFePO4 lithium-ion battery, and ultra-bright Bridgelux LED chips into a single, sleek die-casting aluminum housing. It provides a reliable, wire-free, and maintenance-free lighting experience, perfectly suited for illuminating streets, highways, parking lots, and public squares.

Core Advantages

√  High-Efficiency LED Chips: Features Bridgelux SMD3030 high-efficiency LED chips with lifespan exceeding 50,000 hours, delivering 6,000-10,000 lumens of brightness output.

√  Long-Life Lithium Battery:  Equipped with a premium LiFePO4 lithium battery with over 2,000 charge cycles and lifespan of 5-8 years, reducing maintenance costs.

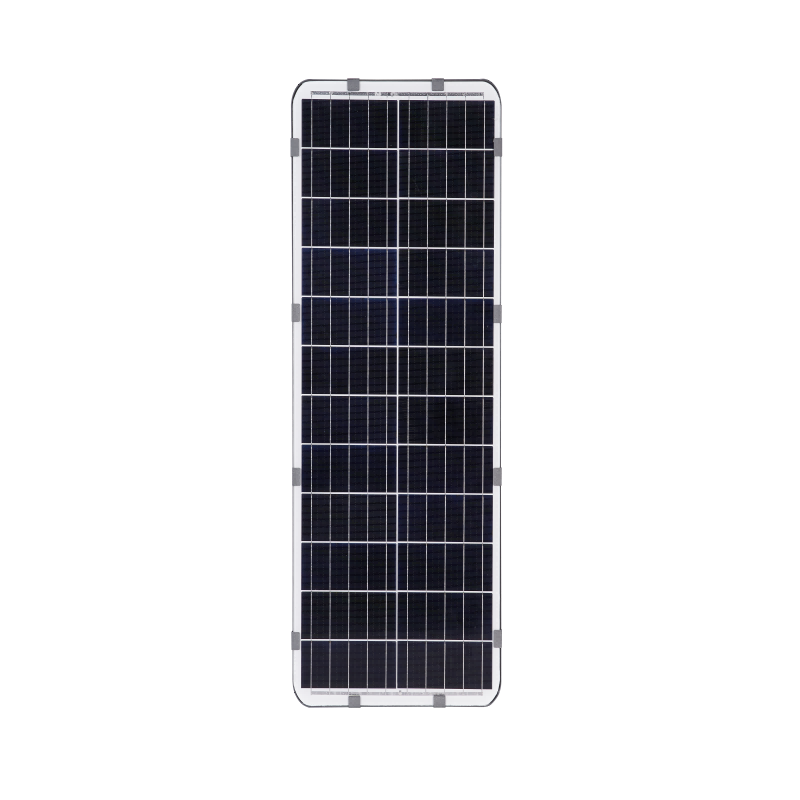

√ High-Efficiency Solar Conversion: Utilizes monocrystalline silicon solar panels with conversion efficiency exceeding 21%, ensuring stable charging performance under various lighting conditions.

√ Waterproof & Dustproof Design: IP65 waterproof rating with die-cast aluminum housing, operating reliably across -25°C to +65°C temperature range.

√  Intelligent Control System: Built-in light control + time control functionality automatically adjusts illumination based on ambient light and preset timing for energy efficiency.

√  Maintenance-Free Design: Integrated design requires no complex installation or maintenance, ready to use out of the box, reducing project costs.

Application Scenarios

The SL014 series is versatile and designed for a wide range of outdoor applications, including:

• Urban branch roads and streets
• Courtyards and gardens
• Public squares and parks
• Parking lots and commercial areas
• Playgrounds and school campuses

Technical Specifications

Installation Guide & Precautions

To ensure optimal performance and longevity of your SL014 Solar Street Light, please adhere to the following guidelines:

• After removing the light from the box, press the switch button to activate the product. Shield the solar panel during daytime to verify proper operation. Charge the light in sunlight for 1 day before installation.
• Do not install solar lights under trees or tall building shade. In the Northern Hemisphere, orient the solar panel facing south; in the Southern Hemisphere, orient it facing north.
• Do not disassemble the product as this will compromise waterproof performance and damage the light fixture.
• The solar panel is fragile. Avoid scratching, knocking, installation impacts, dirt accumulation, or shading, as these will affect solar power generation efficiency.
• This product contains lithium batteries. Comply with air transport regulations and treat as flammable and explosive items. Store isolated from other items to prevent damage.
• Maximum storage period for solar street lights is six months after full charge. For long-term transportation or storage, periodic inspection and charging is required; otherwise, the lithium battery will be damaged.
